Multilift platform lift
The Multilift is a platform lift for indoor and outdoor use that gives people with reduced mobility safe, comfortable access between different levels. It’s suitable for wheelchair users, people using a walker or walking aids, and parents with prams/strollers. With its robust, weather-resistant design and easy operation, the Multilift provides long-term, reliable step-free accessibility.
| Lifting height | Standard 1,219 mm, optional up to 1,829 mm |
| Load capacity | 385 kg |
| Drive system | ACME screw drive, 1.12 kW motor |
| Power supply | 220 V AC, 16 A, 50 Hz, single-phase |
| Directive | EN 81-41 |
-
![Multilift platform lift outside at the house entrance for step-free access to the front door]()
Multilift platform lift by Garaventa Lift for an accessible, step-free outdoor home entrance
-
![Multilift platform lift at the upper landing with the door open and the control panel visible]()
Multilift platform lift by Garaventa Lift at the upper access level
Compact construction
The Multilift platform lift features a space-saving drive system built into the lift tower, so no separate machine room is required and installation is quick. Planning is straightforward thanks to two mast lengths: 2,032 mm (for lifting heights up to 1,219 mm) and 2,642 mm (for lifting heights up to 1,829 mm). For safe everyday use, it includes illuminated hold-to-run (“deadman”) buttons, an automatic drive-on ramp, a non-slip platform, self-locking doors, and safety sensors.
Illuminated push buttons with hold-to-run control and a diagnostic display

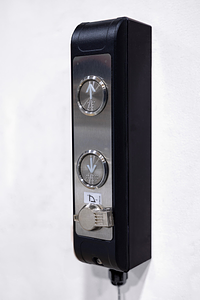

Separate Rufstation für optionale Pfosten- oder Wandmontage
We have the perfect solution for you.
Technical data
| Drive / control | ACME screw drive, 1.12 kW motor |
| Power supply | 220 V AC, 16 A, 50 Hz, single-phase |
| Travel speed | 0.04 m / sec |
| Platform size | V1: 900 × 1,400 mm V2: 1,100 × 1,400 mm |
| Load capacity | 385 kg |
| Travel height | Standard: 1,219 mm Optional: up to 1,829 mm |
| Color | Grey powder coating (RAL 7047) |
| Configuration | Through-access (straight through) or 90° access (corner entry/exit) |
| Safety feature | Safety sensors under the platform Electromechanical door interlock |
| Application | Indoor and outdoor use; residential or commercial installations |
| Directive | Machinery Directive 2006/42/EC / EN 81-41 |
Equipment and options
Standard features:
- Durable grey powder coating (RAL 7047)
- Optional full-metal doors available
- Platform with a non-slip surface
- Automatic drive-on ramp
- Self-locking doors
Optional upgrades:
- Custom colour finishes on request
- Doors available with acrylic inserts
- Adjustable lifting height: standard up to 1.2 m, optional up to 1.8 m
- Optional One-Touch Alert System (GSM module) for emergencies
